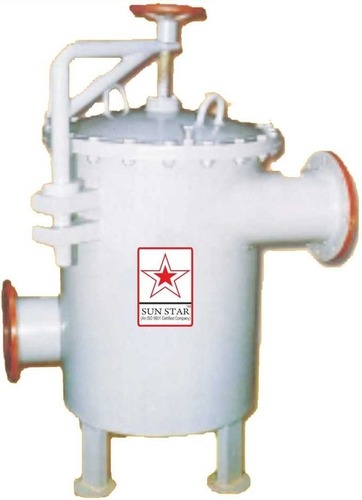

Pot Strainer Cum Sediment Separator

Pot Strainer Cum Sediment Separator

Parameter Specification
Product Name Pot Strainer Cum Sediment Separator
Material Cast Iron, Ductile Iron, SS 304/316
Filter Type Perforated Basket with Fine Mesh Lining
End Connection Flanged / Screwed (BSP/NPT)
Pressure Rating PN10 / PN16 / 150#
Temperature Range 0°C to 120°C (Standard)
Cleaning Access Top Cover Removable for Basket Cleaning
Drain Port Provided with Plug or Ball Valve
Installation Inline – Horizontal Mounting
Sizes Available 2” to 24”
Applications Cooling Towers, Pumps, Chillers, HVAC Systems

Description

The Pot Strainer Cum Sediment Separator is a highly efficient dual-purpose filtration device designed to remove coarse particles, rust, sludge, and sediment from pipeline systems. Its unique pot-shaped body allows for greater dirt-holding capacity, while the integrated sediment separation chamber enhances filtration efficiency by promoting the settling of heavier solids. This results in cleaner fluid flow and protects downstream equipment like pumps, valves, heat exchangers, and chillers.


Key Features:

  • Dual Action Design: Combines straining and sediment separation for superior filtration.

  • High Dirt Holding Capacity: Pot-shaped design holds more sediment without frequent cleaning.

  • Easy Maintenance: Removable top cover for quick access to basket filter and easy cleaning.

  • Durable Construction: Available in Cast Iron, SS 304, SS 316, and Ductile Iron.

  • Drain Port Included: Facilitates quick flushing of collected sediment without disassembly.

  • Low Pressure Drop: Designed for optimal flow with minimal pressure loss.
